High Gain Multi Band Antenna

High Gain Multi Band Antenna

 # Model Frequency Bandwidth Gain Download ENQ
1. CD-100-1000 100 - 1000 MHz. Entire Band 2 to 0dBi.
2. AWD-100-3000 100 - 3000 MHz. Entire Band 2.5 dBi.
3. AC-134-500 134-500 MHz. Entire Band 2 dBi.
4. CD-135-470 135 - 470 MHz Enire Band 2 dBi.
5. CD-300-3000 300 - 3000 MHz. Entire Band 2 to 0dBi.
6. LP-400-3000 400 - 3000 MHz Entire Band 9 dBi.
7. CD-470-860 470-860 MHz Entire Band 3 dBi.
8. CD-500-6000 500 - 6000 MHz Entire Band 2 to 0dBi.
9. LP-700-2500 700 - 2500 MHz. Entire Band 9 dBi.
10. MD-700-2500 700-2500 MHz. Entire Band 2.5 dBi.

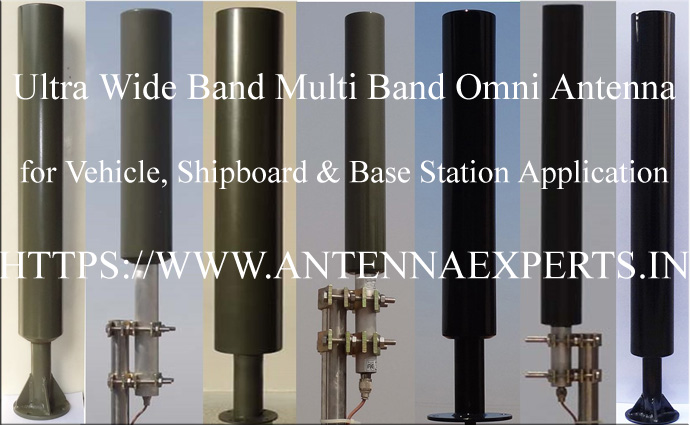

Antenna Experts manufacture high quality Multi Band Antennas from 20-9000 MHz. frequency band. Omni-directional multi band coaxial dipole antennas are rugged all weather model, enclosed in a ABS radome, uses high class brass and aluminum alloy and does not require any field tuning or adjustments. The compact size of omni-directional multiband band antenna allows easy handling, shipping and highly suitable for transmitting, receiving without having the requirement of multiple antennas.

Multi band coaxial dipole antenna is rugged all weather model, enclosed in a ABS radome, uses high class aluminum alloy and does not require any field tuning or adjustments. The UV resistant ABS enclosure has excellent transparency for RF signals and enough strength to withstand specified wind loads. Antenna Experts manufactured multi band omni antenna and multi band directional antenna as per MIL-STD.

All mouti band antennas are also suitable for mounting on the vehicle using standard NATO 4 hole pattern or customezed mounting kit can also be supplied. The compact size of omni-directional coaxial dipole antenna allows easy handling, shipping and highly suitable for receiving, transmitting, scanning, monitoring and jamming applications without having the requirement of multiple antennas. Antenna Experts also manufactured circular polarized multi band horizontal omni antenna for 450MHz, 850MHz, GPS L1 to GPS L6 band and SATCOM band.

The AWD series wide band discone antennas are supplied in dismentle condition for easy of shipping and handling, where as LP series multi band log periodic antennas and MD series multi band discone antennas are supplied complete in assembled condition. The stainless steel mounting hardware is supplied with the antenna. Antenna termination and feed cable lie enclosed inside the mounting pipe for complete weather protection.

AWD-100-3000 multi band discone antenna is specially designed for omni directional coverage. Due to it’s low VSWR through entire band from 100-3000 MHz., this multi band discone antenna can be used as a transmitting and receiving antenna with high efficiency, to meet the broadband requirement of a base station antenna such as spectrum monitoring or jamming applications. The multi band discone antenna when packed, comes with cone and disc elements removed from the antenna body for ease of packing and shipment.

CD-500-6000 multi band coaxial dipole antenna is rugged all weather model, enclosed in a ABS radome, uses high class aluminum alloy and does not require any field tuning or adjustments. The compact size of omni-directional coaxial dipole antenna allows easy handling, shipping and highly suitable for receiving, transmitting, scanning, monitoring and jamming applications without having the requirement of multiple antennas. Antenna termination and feed cable lie enclosed inside the mounting pipe for complete weather protection.

The LP-400-3000 multi band log periodic antenna, is designed to provide wideband directional transmission/reception of radio signals from 400 to 3000 MHz. bands. Output of log periodic antenna is provided via one 50 Ohms coaxial cable at the back end of the antenna boom. The compact size of the log periodic antenna allows easy handling and specially designed mounting arrangement results in fast installation.

CD-470-860 Omni-directional multi band coaxial dipole antenna is rugged all weather model, enclosed in a ABS radome, uses high class brass and aluminum alloy and does not require any field tuning or adjustments. The compact size (0.45Meter shipping length) of omni-directional multiband band antenna allows easy handling, shipping and highly suitable for transmitting, receiving without having the requirement of multiple antennas. The N-Female termination of antenna is fixed at the bottom of the mounting pipe for complete weather protection. Cylindrical enclosure is used for low wind loading and for minimal effect of ice formation on the antenna operation as well as providing an aesthetically pleasing appearance.

JCD-300-3000 multi band dipole antenna is an omni-directional antenna for vertically polarized waves. JCD-300-3000 multiband omni-directional antenna is rugged all weather model, enclosed in a ABS radome, uses ultra corrosion resistant aluminum alloy and does not require any field tuning or adjustments. The compact size of mutli band omni-directional antenna allows easy handling, shipping. This multi band antenna features high suppression of skin current which provides the smooth VSWR over the 300-3000MHz frequency band. Cylindrical enclosure is used for low wind loading and for minimal effect of ice formation on the antenna operation as well as providing an aesthetically pleasing appearance. Due to sturdy design the and wide bandwidth the coaxial dipole jammer antenna is highly suitable for fixed station application, shipboard mounting and mobile application without having the requirement of multiple antenna.

JCD-500-2500 broadband omni-directional multi band antenna is rugged all weather model, enclosed in a ABS radome, uses high class aluminum alloy and does not require any field tuning or adjustments. The compact size of omni-directional multi band antenna allows easy handling, shipping and highly suitable for receiving, transmitting, scanning, monitoring, surveillance and jamming applications without having the requirement of multiple antennas. Antenna termination and feed cable lie enclosed inside the mounting pipe for complete weather protection.

QHA-1117 broadband hemi omni-directional LHCP hemi omni quadrifilar helix or RHCP hemi omni quadrifilar helix antenna is rugged all weather model, enclosed in a ABS radome, uses high class copper alloy and does not require any field tuning or adjustments. The compact size of LHCP or RHCP omni-directional quadrifilar helix antenna allows easy handling, shipping and highly suitable for receiving, transmitting, scanning, monitoring, surveillance and jamming applications for GPS L1, GPS L2, GPS L3, GPS L4, GPS L5, GPS L6, IRIDIUM, GLONASS, and INMARSAT bands without having the requirement of multiple antennas. The antenna is also highly suitable for Ground to Air communication/jamming application due to its wide elevation beamwidth with omni-directional properties. Antenna termination fitted just below the NATO mounting flange for complete weather protection. Other type of mounting hardware / configuration can be supplied on request.

Antenna Experts offer following types of multi band antennas for fixed base station, repeater station, vehicular application, jamming application, SATCOM application, signal intelligence application, electronic warfare application, surveillance application, military tactical application, manpack application, satcom application and many more..

For Omnidirectional Vertical Polarized Signal: Please visit our “Wide Band Discone Antennas” section, “Manpack Jammer Antennas” section, “Coaxial Dipole Antenna” section and “Multi Band Antenna” section of our website for broadband omnidirectional antenna.

For E & H Dual Polarized Signal Simultaneously: Please visit our “Dual Polarized Log Periodic Antenna” section of our website for directional coverage for both vertical & horizontal polarized signals simultaneously.

For E or H Dual Polarized Signal: Please visit our “Log Periodic Antenna” section of our website for directional vertical or horizontal polarized signal by changing the polarization of LP antenna.

For Directional Circular Polarized Signal: Please visit our “Spiral Antennas” Section, “Horn Antenna” section, “Helical Antenna” section and “RCIED Jammer Antenna” section of our website for broadband directional antenna.

For Omnidirectional Circular Polarized Signal: Please visit our “Quadrifilar Helix Antennas” Section of our website for broadband horizontal omnidirectional antenna but with circular polarization. Both RHCP and LHCP version of QHA series antennas are available.

For HF Broadband Antenna E or H Polarized Signal: Please visit our “HF Tactical Vertical Whip Antennas” section and “HF Broadband Dipole Antenna” section of our website for HF broadband horizontal omnidirectional antenna and HF broadband vertical omnidirectional antenna.
