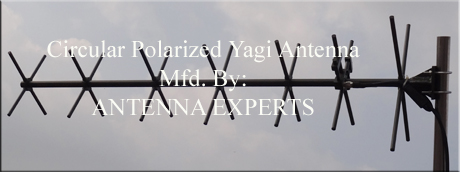

VHF UHF Circular Polarized Yagi Antenna


 VHF UHF Circular Polarized Yagi Antenna

Antenna Experts manufacture circular polarized yagi antenna for 134-174MHz, 220-290MHz, 300-400MHz and 406-512MHz frequency bands. Our VHF circular polarized yagi antenna and UHF circular polarized yagi antenna design reflects innovative modern antenna construction. The mounting hardware of VHF UHF circular polarized yagi antenna is made of type 316 marine grade stainless steel. Antenna Experts also manufactures circular polarized yagi with customized frequency band.

Antenna Experts circular polarized CY series VHF/UHF rugged, all weather Crossed Elements, circular polarized yagi nntenna is designed for Circular Polarization. Special mounting hardware is fixed at the centre of gravity of the circular polarized yagi antenna for mounting on a round pipe supplied with the circular yagi antenna. The Circular Yagi antenna can be configured to work as RHCP or LHCP field selectable by inter-changing the 90 Degrees delay harness cable.

Antenna Experts circular polarized yagi antenna uses a GAMMA matching feed, eliminating the use of folded dipole. The circular polarized yagi antenna termination uses N-Female connector fixed on the antenna dipole. These Circular Yagi Antenna are highly directional, comes factory tuned and does not require any field adjustment. The feed point radiator of circular yagi antenna is enclosed in a Nylon housing designed to protect against severe environmental conditions and minimize pattern distortion.

Antenna Experts CY series circular polarized yagi antenna is rugged, all weather crossed elements yagi antenna use 6063T6 ultra corrosion resistant architectural anodized aluminum alloy, is designed for circular polarization. The complete circular polarization yagi antenna is supplied with powder coating finish to protect the antenna further from severe environmental condition.The mounting hardware and all fasteners of circular polarized yagi antenna are made of type 316 marine grade stainless steel

The phase shifter cable and harness cable comes with impedance matched moulded joints for low VSWR and protection against weather. When the antenna is mounted on the rotator, the crossed elements array makes an angle of 45 degrees with respect to horizontal plane. A crossed member will be supplied with the antenna for necessary mounting arrangement on a Rotator.

Antenna Experts CY series circular polarized yagi antenna is supplied with N termination fixed on the driven element. This directional circular polarized yagi antenna, comes factory tuned and does not require any field adjustment. The circular polarized yagi antenna is highly suitable as base station antennas for satellite tracking and telemetry application sites where longer satellite communication range is required.

Radiating elements, supporting booms and adjoining metal castings of circular polarized yagi antenna have been constructed in 6063T6 ultra corrosion resistant architectural anodized aluminium alloys to prevent corrosion. Our VHF UHF circular polarized aagi antenna is supplied with powder coating finish to protect the yagi antenna further from severe environmental conditions.

The VHF Circular Polarized Yagi antennas when packed, comes with elements removed from the antenna boom for ease of packing and transportation where as the UHF Yagi Antennas comes in pre-assembled design with permanently fixed elements in to the support boom. The antenna is supplied with olive green MIL color finish. Other customized housing/radome color can also be supplied on request

Sl.# Model # Freq. Band Gain Bandwidth VSWR
1. CY-150 134-174MHz. 11dBi 5 MHz 1.5:1
2. CY-250 220-290MHz. 11dBi 8 MHz 1.5:1
3. CY-350 300-400MHz. 11dBi 10 MHz 1.5:1
3. CY-450 400-512MHz. 11dBi 20 MHz 1.5:1

To know more about our circular polarized cross elements yagi antennas products datasheets and installation manuals, please visit "Satellite Telemetry & Tracking Antenna" section of our website or alternatively you can request us more detailed datasheet in PDF format including VSWR curve and radiation patterns.
