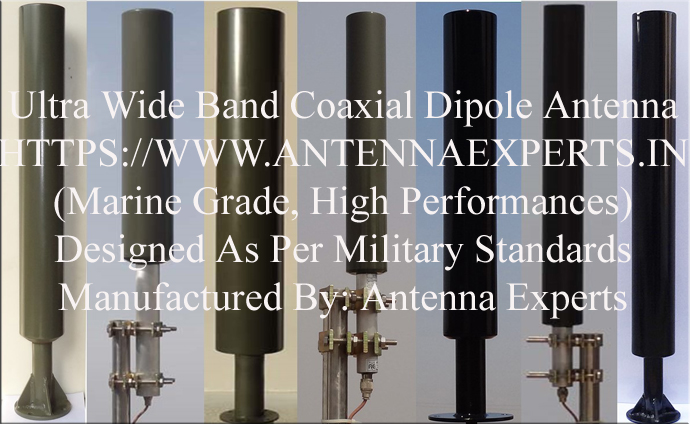

Coaxial dipole antenna manufactured by Antenna Experts offers true omni directional radiation pattern and wide vertical / elevation beamwidth providing excellent null fill for consistent signal coverage. All elements of high gain broad band coaxial dipole antenna are fully welded to its appropriate location to prevent RF inter-modulation and antenna is completely protected within a high-tech ruggedized radome which is made of ABS material to ensure survivability in the worst environments conditions
CD series vertical coaxial dipole antennas are omni-directional antennas for vertically polarized waves. These coaxial dipole antenna are sturdy, rugged all weather model, enclosed in a ABS radome, uses 6063T6 ultra corrosion resistant architectural aluminum alloy and does not require any field tuning or adjustments. The compact size of multi band omni-directional vertical coaxial dipole antennas allows easy handling, shipping and highly suitable for transmitting, receiving without having the requirement of multiple antennas.
CD-112-156 Omni-directional high gain VHF military aviation band coaxial dipole antenna is rugged all weather model, enclosed in a ABS radome and does not require any field tuning or adjustments. The compact size of omni-directional coaxial dipole antenna allows easy handling, shipping and highly suitable for transmitting, receiving without having the requirement of multiple antennas. The N-Female termination of high gain coaxial dipole antenna is fixed at the bottom of the mounting pipe for complete weather protection. Cylindrical enclosure is used for low wind loading and for minimal effect of ice formation on the antenna operation as well as providing an aesthetically pleasing appearance
CD-100-1300 coaxial dipole antenna is an omni-directional antenna for vertically polarized waves. CD-100-1300 Omni-directional coaxial dipole antenna is rugged all weather model, enclosed in a ABS radome, uses ultra corrosion resistant aluminum alloy and does not require any field tuning or adjustments. The compact size of omni-directional coaxial dipole antenna allows easy handling, shipping. The coaxial dipole antenna features high suppression of skin current which provides the smooth VSWR over the 100-1300MHz frequency band. Cylindrical enclosure is used for low wind loading and for minimal effect of ice formation on the antenna operation as well as providing an aesthetically pleasing appearance.
Our CD5 and CD6 series antennas are high performance and high gain omnidirectional coaxial dipole antennas. CD5-225-400 coaxial dipole antenna is a 5dBi gain omni antenna covering the entire military aviation band 225-400MHz, minimizing the requirement of multiple antennas which utilized the tower space.
Similarly CD6-470-860 antenna is a 6dBi gain omni antenna covering the entire TV Band IV-V with single antenna. CD6-470-860 high gain antenna can be used for TV broadcasting, TV reception, low power Tx. station for small campus and remote area reception where other conventional antennas are not suitable. High power antennas can also be supplied on request.
Both CD5-225-400 and CD6-470-860 high gain antennas uses special "Choke and Spark Gap" technique for smooth VSWR and constant 5dBi. gain over the entire 470-860 MHz. frequency band and 6dBi gain over the entire 470-860 MHz. frequency band respectively.
CD-400-700 UHF coaxial dipole antenna is an omni-directional antenna for vertically polarized waves. CD-400-700 Omni-directional UHF coaxial dipole antenna is rugged all weather model, enclosed in a ABS radome, uses ultra corrosion resistant aluminum alloy and does not require any field tuning or adjustments. The compact size of omni-directional coaxial dipole antenna allows easy handling, shipping and highly suitable for base station application without having the requirement of multiple antennas. The coaxial dipole antenna features high suppression of skin current which provides the smooth VSWR over the 400-700MHz frequency band.
CD-300-3000 Omni-directional multi band coaxial dipole antenna is rugged all weather model, enclosed in a ABS radome, uses 6063T6 ultra corrosion resistant architectural aluminum alloy and does not require any field tuning or adjustments. The compact size of omni-directional multiband band antenna allows easy handling, shipping and highly suitable for transmitting, receiving without having the requirement of multiple antennas. The N-Female termination of antenna is fixed at the bottom of the mounting pipe for complete weather protection. Cylindrical enclosure is used for low wind loading and for minimal effect of ice formation on the antenna operation as well as providing an aesthetically pleasing appearance.
The coaxial dipole antenna features high suppression of skin current which provides the constant and superior performance over the specified frequency band. The special “Choke and Spark Gap” technique is used for smooth VSWR over the specified frequency band. The N-Female termination of coaxial dipole antenna is fixed at the bottom of the mounting pipe for complete weather protection.
Cylindrical enclosure is used for low wind loading and for minimal effect of ice formation on the coaxial dipole antenna operation as well as providing an aesthetically pleasing appearance. Due to sturdy design the vertical coaxial dipole antennas are highly suitable for fixed station application, shipboard mounting and mobile application.
The CD series vertical coaxial dipole antennas are consisting of round diameter radiating elements stacked vertically and enclosed in ABS radome. The ABS enclosure has excellent transparency for RF signals and enough strength to withstand specified wind loads. The marine grade type 316 stainless steel mounting brackets are supplied with the multi band coaxial dipole antenna.
The CD series of coaxial dipole antennas are particular suitable for transmission, reception, monitoring, scanning and jamming applications due to its capability of receiving/transmitting the broad band width. The CD series vertical coaxial dipole antenna features high power handing capabilities, high efficiency, low VSWR and robust mechanical design to accommodate the most extreme environments condition.
Antenna Experts manufactured 100-1300MHz coaxial dipole antenna CD-100-1300, 108-512MHz coaxial dipole antenna CD-108-512, 118-400MHz coaxial dipole antenna CD-11-400, 135-470MHz coaxial dipole antenna CD-135-470, 225-400MHz coaxial dipole antenna CD-225-400, 225-400MHz high gain 5dBi (3dBd) coaxial dipole antenna CD5-225-400, 300-3000MHz coaxial dipole antenna CD-300-3000, 500-3000MHz coaxial dipole antenna CD-500-3000, 470-860MHz coaxial dipole antenna CD-470-860, 470-860MHz high gain 6dBi coaxial dipole antenna CD6-470-860,500-2600MHz coaxial dipole antenna CD-500-2600, 2600-6000MHz coaxial dipole antenna CD-2600-6000, 1000-6000MHz coaxial dipole antenna CD-1000-6000, 500-6000MHz coaxial dipole antenna CD-500-6000
Please refer to our "Coaxial Dipole Antenna" section for more details on VHF UHF coaxial dipole antenna products datasheets and installation manual. Also you can ask us for detailed datasheets of these coaxial dipole antennas in pdf format.You can request more technical informaion about coaxial dipole antenna like VSWR chart and radiation patterns.
