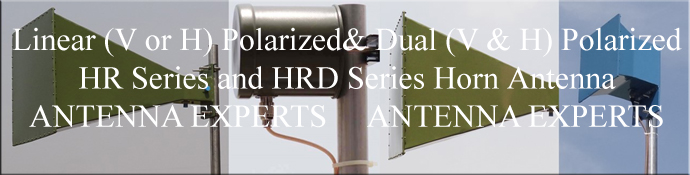

Horn Antenna - Linear Polarized Horn Antenna, Dual Polarized Horn Antenna & Circular Polarized Horn Antennas


Horn Antenna - Linear Polarized Horn Antenna, Dual Polarized Horn Antenna & Circular Polarized Horn Antennas

Antenna Experts manufactures military grade horn antennas with single linear polarization, dual linear polarization and circular polarization. Our horn antennas are ideal for spectrum monitoring, surveillance, jamming and EMC applications due to its wide band design features. Antenna Experts HR and HRD series horns antenna generates high electric fields required for radiated immunity and emissions EMC test measurements, and features high gain, low VSWR, moderate power handling, broadband range, and a robust mechanical design.

Antenna Experts have many years of RF design experience and the latest modeling technique allowed us to design horn antennas to as per our customers technical specifications. Gain, beam-width and operational power level requirements of horn antennas are integrated into the design process at the outset, whilst mechanical and environmental considerations are also very often major contributing factors.

Antenna Experts wide band horn antennas are fitted with a convenient mounting plate which is easy to change the polarization from vertical to horizontal and vice versa with simple hand tools. Horn antennas designed and supplied with an aperture window to prevent ingress of moisture. Antenna Experts horn antennas can be supplied with variety of mounting option and color option.

Antenna Experts fully equipped workshops undertake all of our general manufacturing, argon welding, whilst specialized processes such as powder coating are outsourced. Horn antennas manufactured by us are fully welded. Many of our horn antennas require very demanding manufacturing tolerances, a routine aspect of the work carried out by our team of highly skilled engineers. Once realized in the metal shop, our horn antennas are fully tested to the required specifications using a comprehensive range of calibrated test equipments. Radiation patterns and gain measurements are made on our open area test site.

Antenna Experts Dual Polarized Horn Antennas enable transmission/reception, or both, of RF signals simultaneously in two orthogonal polarizations. Our HRD series dual polarized horn antennas are great for use in RF spectrum analysis, Ideal for Interference detection and surveillance application. Our dual polarized horn antennas provide excellent isolation between two ports. Our HRD series dual polarized horn antennas can be used to obtain Circular and Dual Circular polarized operation with a suitable hybrid coupler. Dual polarized horn antennas manufactured by us are supplied with all weather protective radomes.

A number of radome options are available, dependent on the customer requirements. These range from a simple, functional cover to prevent the ingress of dirt or air-borne particles. Extreme environmental conditions can also dictate further measures to maintain both electrical and mechanical integrity and longevity. We also design and manufacture radomes used for beam forming applications.

Simple rear mounting plates are standard on most of our horn antennas, with centre of gravity mounting points provided on heavier and larger horn antenna models. These allow mounting in two polarizations by removal and refitting. Our horn antennas are usually supplied painted grey or powder coated light grey.

Antenna Experts would be pleased to supply horn antenna with customized frequency band, customized connector, any specified paint color or custom finish.

High Gain Horn Antennas



Sl.#Model #Freq. BandGain@ LBGain@ MB Gain@ HB Termination
1.HR-1117-81.1-1.7 GHz.6 dBi8 dBi10 dBiN-Female
2.HR-1117-141.1-1.7 GHz.11dBi14 dBi16 dBiN-Female
3.HR-1726-111.7-2.6 GHz.9 dBi11 dBi13 dBiN-Female
4.HR-1726-151.7-2.6 GHz.13 dBi15 dBi17 dBiN-Female
5.HR-2640-152.6-4.0 GHz13 dBi15 dBi17 dBiN-Female
6.HR-2640-192.6-4.0 GHz.17 dBi19 dBi21 dBiN-Female
7.HR-3060-113.0-6.0 GHz.8 dBi11 dBi14 dBiN-Female
8.HR-3060-173.0-6.0 GHz.14 dBi17 dBi20 dBiN-Female
9.HR-4060-134.0-6.0 GHz.11 dBi13 dBi15 dBiN-Female
10.HR-4060-184.0-6.0 GHz.16 dBi18 dBi20 dBiN-Female
11.HR-4060-214.0-6.0 GHz.19 dBi21 dBi23 dBiN-Female

Dual Polarized High Gain Horn Antennas



Sl.#Model #Freq. BandGain@ LBGain@ MB Gain@ HB Termination
1.HRD-1117-81.1-1.7 GHz.6 dBi8 dBi10 dBi2xN-Female
2.HRD-1117-141.1-1.7 GHz.11dBi14 dBi16 dBi2xN-Female
3.HRD-1726-111.7-2.6 GHz.9 dBi11 dBi13 dBi2xN-Female
4.HRD-1726-151.7-2.6 GHz.13 dBi15 dBi17 dBi2xN-Female
5.HRD-2640-152.6-4.0 GHz13 dBi15 dBi17 dBi2xN-Female
6.HRD-2640-192.6-4.0 GHz.17 dBi19 dBi21 dBi2xN-Female
7.HRD-3060-113.0-6.0 GHz.8 dBi11 dBi14 dBi2xN-Female
8.HRD-3060-173.0-6.0 GHz.14 dBi17 dBi20 dBi2xN-Female
9.HRD-4060-134.0-6.0 GHz.11 dBi13 dBi15 dBi2xN-Female
10.HRD-4060-184.0-6.0 GHz.16 dBi18 dBi20 dBi2xN-Female
11.HRD-4060-214.0-6.0 GHz.19 dBi21 dBi23 dBi2xN-Female
