VHF UHF Log Periodic Dipole Antennas 20-500 MHz


VHF UHF Log Periodic Dipole Antennas 20-500 MHz

Antenna Experts offer a wide range of military grade tactical and base station log periodic antennas covering the HF, VHF, UHF and microwave frequency bands for defense/military monitoring, scanning, receiving, signal intelligence, jamming and transmitting applications. Apart from the list appeared in our website, we are experts to develop antenna with any frequency band. The LP, LPL & LPDP series ranges of 20-500 MHz log periodic dipole array are high gain array that provides strong performance over the operating frequency range of 20 MHz to 3000 MHz.

The log periodic dipole antenna use 6063T6 ultra corrosion resistant architectural anodized aluminum alloy and designed to provide wideband directional transmission/reception of radio signals from 20-500 MHz VHF UHF bands. All the log periodic antennas are supplied with powder coating to protect it further from severe environmental conditions. The extra spacers are used between the support booms to improve mechanical durability of 20-500MHz tactical log periodic antenna. The specially designed mounting arrangement results in fast installation. The tactical LP antenna can be assembled in less than 10 minutes.

These 20-500MHz tactical log periodic dipole antenna systems are particular suitable for transmission, reception, monitoring, scanning and jamming applications due to its broad band design feature, small size and high power handling capacity. The tactical log periodic antenna uses loading technique to reduce the overall size of array making these highly suitable for mobile and tactical applications. All the LP, LPL series 20-500MHz VHF UHF LP antenna has foldable elements, similarly the support boom of antenna is supplied in two sections for easy of shipping/carrying/transportation and handling. All elements are supplied in two segments for easy of shipping and handling. The elements are attached via a fast deployment self-locking device at points along the boom.

All the log periodic antenna operates at D.C. ground with low resistance discharge path for protection against lightning and immunity to noise. All the screws, nuts and bolts of tactical log periodic dipole antenna are made of type 316 marine grade stainless steel. The LP, LPDP series LPD Antennas features high power handing capabilities, high efficiency, low VSWR and robust mechanical design to accommodate the most extreme environments condition.

The military and intelligence communities face a difficult challenge - the need to monitor communications over a very wide frequency range without being detected. Present electronic surveillance systems employ multiple antennas that are either large or noisy. ANTENNA EXPERTS antenna systems provides passive antennas in compact, versatile form factors that provide extreme wideband performance over 20-500MHz for surveillance application, signal intelligence SIGINT application and electronic warfare EW applications.

The LP, LPL series ranges of 20-500 MHz VHF UHF log periodic dipole array are high gain array that provides strong performance over the operating frequency range of 20-6000 MHz. as the log periodic dipole array does not use loading technique to reduce the overall size of array.

These 20-500MHz log periodic dipole antennas uses 6063T6 ultra corrosion resistant architectural aluminum alloy and designed to provide wideband directional transmission/reception of radio signals from 20-500 MHz bands. The log periodic antennas are suitable for receiving, transmitting, scanning, monitoring and jamming applications due to its broadband design feature.

The LP, LPDP series VHF UHF 20-500 MHz LPDA features high power handing capabilities, high efficiency, low VSWR, low loss and robust mechanical design to accommodate the most extreme environments condition. The complete antenna is supplied with powder coating finish to protect it further for severe weather. The 20-500MHz Log Periodic Dipole Array operates at D.C. ground with low resistance discharge path for protection against lightning and for immunity to noise and are compatible with MIL-STD-810F.

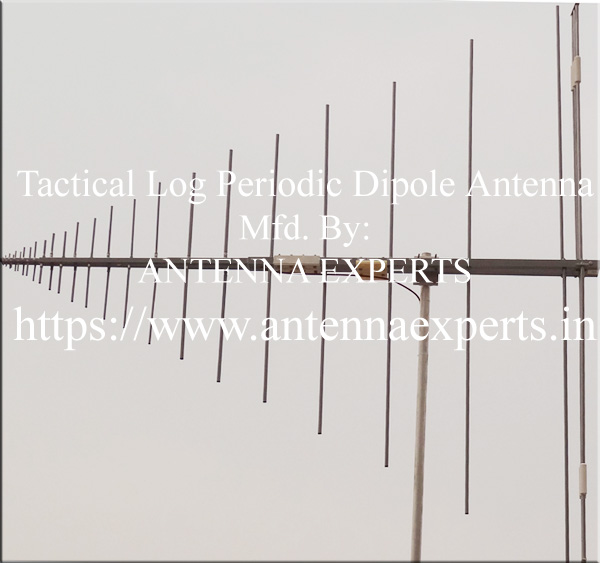

20-500MHz Log Periodic Dipole Antenna



Sl.#Model #Freq. BandGainVSWR Beamwidth Dimension Termination
1.LP-20-50020-500 MHz.6-9 dBi2.5:1100 +/-15 Degrees6200x7500mmDIN-F or N-F
2.LPL-20-50020-500 MHz.6 dBi2.5:1100 +/- 15 Degrees6200x5700 mmDIN-F or N-F
3.LP-20-500L20-500 MHz.6 dBi2.5:1100 +/-15 Degrees3000x3000mmDIN-F or N-F
4.LP-20-80-50020-500MHz.6,5 dBi2.5:1100 +/-15 Degrees2500x2000mmDIN-F or N-F

Please visit "Log Periodic Antenna" section and "Defense Antenna" section of our website to download the datasheets and installation manual in pdf format. You can aslo request more technical information like VSWR chart and radiation patterns.
