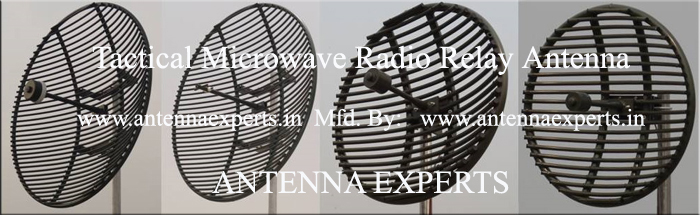

Tactical Grid Parabolic Antenna for NATO Band I, NATO Band II, NATO Band III and NATO Band IV


Tactical Grid Parabolic Antenna for NATO Band I, NATO Band II, NATO Band III and NATO Band IV

The APT series tactical military radio relay antenna manufactured by Antenna Experts uses 6063T6 ultra corrossion resistant architectural anodized aluminum alloy. Our APT series tactical radio relay antennas are highly suitable for all tactical and fixed station applications for conventional military radio relay systems.

The military tactical radio relay grid antenna manufactured by Antenna Experts available in NATO Band I, NATO Band II, NATO Band III and NATO Band IV. The military tactical grid antenna operates in linear (vertical or horizontal) polarization and requires only one operator for installation.

The mounting arrangement of tactical grid antenna manufactured by Antenna Experts permits to change the polarization from horizontal to vertical and vice-versa by mounting hardware fitted at rear end of the antenna. Also the grid parabolic reflectors of these APT series tactical microwave radio relay antennas are supplied complete in assembled condition.

These APT series tactical radio relay grid antennas features high gain, low side lobes, rugged constructions and perfect for use in crowded electromagnetic spectrums which avoid interference from co-sited antennas. The dipole feed (horn) of these APT series tactical radio relay antennas are sealed in enclosure making these antenna highly suitable for severe environmental conditions.

The parabolic reflector is illuminated by a primary feed which is fitted to the center of assembly with quick fastener system. Radiating elements and the dipole feed are made of high quality aluminum alloy to avoid any dis-similar materials.

The grid parabolic tactical radio relay antenna operates at D.C. ground with low resistance discharge path for protection against lightning and immunity to noise. These APT series tactical radio relay antennas can be installed within 5 minutes by two technicians with simple hand tools.

All the APT series antenna manufactured by Antenna Experts supplied with +/-15 degrees elevation tracking mechanism where fine adjustment is necessary to optimized the signal strength of voice/data link having very narrow beamwidth of these antennas. Also these APT series tactical microwave radio relay antennas are high suitable for High Speed Terrestrial Data link.

All the screws, nuts and bolts of tactical microwave antennas manufactured by Antenna Experts are of type 316 marine grade stainless steel. The support pipe and support rim are welded together to provide the extra rigidity and strength to withstand the specified wind load. The antenna supplied with standard olive green color. Other customized color can also be supplied on request.

The APT-1327 series tactical microwave antenna operates in the 1350-2700MHz. frequency band which cover the entire NATO band III+ frequency band with single antenna and single dipole feed. The dipole feed of all the APT series antennas are sealed in a fiberglass/ABS housing to make these tactical grid antenna highly weather proof to protect these from severe environmental condition.

Antenna Experts tactical grid parabolic antenna supplied with army green color. The complete grid parabolic antenna is supplied with anti-corrosive powder coating finish and the dipole feed is completely sealed inside ABS housing/radome to make the antenna 100% weather proof.

The APT-4726 and APT-4729 series tactical microwave antenna operates in the 4400-5000 MHz frequency band which cover the entire NATO band IV frequency band with 26dBi gain from 0.6 meters (2 feet) parabola and 29dBi gain from 0.9 meters (3 feet) diameter parabola respectively.

The APT-4732 and APT-4734 series tactical microwave antenna operates in the 4400-5000 MHz frequency band which cover the entire NATO band IV frequency band with 32dBi gain from 1.2 meters (4 feet) parabola and 34dBi gain from 1.5 meters (5 feet) diameter parabola respectively.

The APT-1617, APT-1619 and APT-1622 series tactical microwave antenna operates in the 1350-1850 MHz frequency band which cover the entire NATO band III frequency band with single dipole feed.

The APT-1327-3 and APT-1327-4 series tactical microwave antenna operates in the 1350-2700 MHz frequency band which cover the entire NATO band III+ frequency band with 18-24dBi gain from 0.9 meter (3 feet) parabola and 21-27dBi gain from 1.2 meters (4 feet) diameter parabola respectively.

Antenna Experts Tactical Grid Parabolic Antenna Complied the following MIL-STD Environmental Specifications:

High Temperature: MIL-STD-810G, Method 500.5, Procedures I and II (Operational: +70°C and Storage: +70°C)

Low Temperature: MIL-STD-810G, Method 502.5, Procedures I and II (Operational: -30°C and Storage: -40°C)

Low Pressure(Altitude): MIL-STD-810G, Method 500.5, Procedures I and II (Operational: -457.2 m to 4572 m Storage: 15,240 m)

Vibration: MIL-STD-810G, Method 514.6, Procedure I Table 514.6C-VI, Category 4 Duration 120 minutes test

Shock: MIL-STD-810G, Method 516.6, Procedure IV

Rain: MIL-STD-810G, Method 506.5, Procedure I

Humidity: MIL-STD-810G, Method 507.5, Procedures I and II

Fungus Resistance: MIL-STD-810G, Method 508.6

Salt Fog: MIL-STD-810G, Method 509.5

Please visit our "Tactical Radio Relay Antenna" section for more details on tactical radio relay grid parabolic antenna products datasheets and installation manual in pdf format. You can also request us for more detailed datasheet including VSWR curve and radiation patterns.
