The LP-20-3000L tactical log periodic dipole antenna uses 6063T6 ultra corrosion resistant architectural anodized aluminum alloy and designed to provide ultra wide band directional transmission/reception of radio signals from 20-3000 MHz bands. The tactical log periodic antenna has typical 6dBi gain over 95% of the 20-3000MHz band. Similarly the tactical log periodic antenna has less than 2.5:1 VSWR over 95% of the band. 20-3000 MHz tactial log periodic antenna is high power handling capacity antenna which can handle 7KW at 20MHz, 1KW at 1000MHz and 500 Watts at 3000MHz.
The horizontal half power beamwidth of LP-20-3000L tactical military log periodic antenna is 110 degrees typical whereas vertical beamwidth is 60 degrees typical. The DIN-Female connector is supplier with the antenna as a termination for high power handling. For low power handling capacity or receive only applications, customized connectors can be supplied on the specific request of the clients. The complete tactical log periodic antenna is supplied with powder coating to protect it further from severe environmental conditions. The extra spacers are used between the support booms to improve mechanical durability of tactical log periodic antenna.
The specially designed mounting arrangement results in fast installation. The polarization of LP-20-3000L tactical log periodic antenna can be changed from horizontal to vertical in the field easily with simple hand tools. Two mounting brackets are fitted on the tactical log periodic antenna. One is made of non-metallic material NYLON which is used for horizontal polarization. Similarly a metallic mounting bracket is fitted on the boom which is used for vertical polarization.
The tactical LP antenna can be assembled in the field in less than 10 minutes with simple hand tools. This tactical log periodic dipole antenna system is particular suitable for transmission, reception, monitoring, signal intelligence, surveillance, scanning and jamming applications due to its broad band design feature, small size and high power handling capacity. This tactical log periodic antenna uses loading technique to reduce the overall size of array. The shipping length of antenna is 6 feet making it highly suitable for mobile and tactical applications. The shipping dimension of the antenna 20-3000MHz is 1800mm x 250mm x 250mm
The LP-20-3000L assembled tactical log periodic antennas outer-most dimensions are 3 meters (10 feet) long and 3 meters (10 feet) wide. The tactical LP antenna has foldable elements, the longest of which is 1.5 meters. Similarly the support boom of antenna is supplied in two sections for easy of shipping/carrying/transportation and handling.
All elements are supplied in two segments for easy of shipping and handling. The elements are attached via a fast deployment self-locking device at points along the boom. The tactical log periodic antenna operates at D.C. ground with low resistance discharge path for protection against lightning and immunity to noise. All the screws, nuts and bolts of tactical log periodic dipole antenna are made of rust proof type 316 marine grade stainless steel. For higher gain and fixed station installation application Model # LP-20-3000 is designed on full scale without loading technique to improve the overall efficiency of the tactical log periodic antenna.
The LP-80-2000 log periodic dipole antenna use 6063T6 ultra corrosion resistant architectural anodized aluminum alloy and designed to provide wideband directional transmission/reception of radio signals from 80-2000 MHz bands. The specially designed mounting arrangement results in fast installation. The extra spacers are used between the support booms to improve mechanical durability of antenna. This log periodic dipole antenna system is particular suitable for transmission, reception, monitoring, surveillance, scanning and jamming applications due to its broad band design feature. This high gain LPA provides strong performance over the entire frequency of 80-2000 MHz as the LPDA does not use loading technique to reduce the overall size of array. The high gain log periodic antenna can be assembled in less than 5 minutes by 2 technicians.

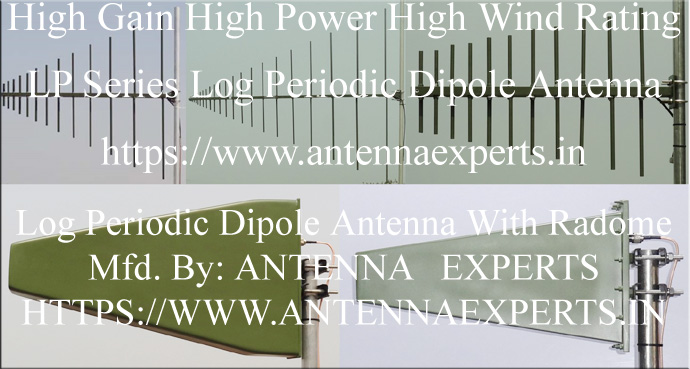

The LP series antenna has removable elements, making these LP antennas highly suitable for easy of shipping/carrying/transportation and handling. All elements are supplied in two segments for easy of shipping and handling. The elements are attached via stainless steel nuts & bolts systems at points along the boom. The powder coating on complete log periodic dipole antennas surfaces ensures complete protection from corrosive gases, ultraviolet radiation, salt spray, acid rain and sand storms in desert environments also provides extra protection against corrosion in saline weather present in coastal areas. The coaxial cable of log periodic dipole antennas sealed inside the support boom to make it weatherproof. The Log Periodic Dipole Array operates at D.C. ground with low resistance discharge path for protection against lightning and for immunity to noise. Log periodic dipole antenna above 300MHz are supplied complete in assembled conditions. Optionally these UHF log periodic antenna can be supplied with radome/housing.
The LPDP-20-80-500 tactical cross polarized log periodic dipole antenna use 6063T6 ultra corrosion resistant architectural anodized aluminum alloy and designed to provide wideband directional spectrum monitoring of radio signals from 20-500 MHz bands. The complete tactical dual polarized log periodic antenna is supplied with powder coating to protect it further from severe environmental conditions. The extra spacers are used between the support booms to improve mechanical durability of tactical dual log periodic antenna. The specially designed mounting arrangement results in fast installation. The tactical dual polarized LP antenna can be assembled in less than 10 minutes. This tactical cross elements log periodic dipole antenna system is particular suitable for spectrum monitoring applications or low power Tx. application due to its broad band design feature, small size and its capability of receiving / transmitting both the E & H polarized signals simultaneously. This tactical cross log periodic antenna uses loading technique to reduce the overall size of array. The shipping length of antenna is 8.3 feet making it highly suitable for mobile and tactical applications.
The LPDP-500-3000 dual polarized tactical log periodic antenna uses 6063T6 ultra corrosion resistant architectural anodized aluminum alloy. tactical log periodic antenna is designed to provide wideband directional transmission/reception of horizontal and vertical radio signals from 500-3000 MHz bands. The extra spacers are used between the support booms to improve mechanical durability of tactical log periodic antenna. The specially designed mounting arrangement results in fast installation. This tactical dual polarized log periodic dipole antenna system is particular suitable for transmission, reception, monitoring, scanning and jamming applications due to its capability of receiving/transmitting both the E & H polarized signals simultaneously. This high gain cross LP provides strong performance over the entire frequency of 500-3000 MHz as the LPDA does not use loading technique to reduce the overall size of array.
The LPDP-20-3000L tactical cross polarized log periodic dipole antenna use 6063T6 ultra corrosion resistant architectural anodized aluminum alloy and designed to provide wideband directional transmission/reception of radio signals from 20-3000 MHz bands. The complete tactical dual polarized log periodic antenna is supplied with powder coating to protect it further from severe environmental conditions. The extra spacers are used between the support booms to improve mechanical durability of tactical log periodic antenna. The specially designed mounting arrangement results in fast installation. The tactical dual polarized LP antenna can be assembled in less than 10 minutes. This tactical cross elements log periodic dipole antenna system is particular suitable for transmission, reception, monitoring, scanning and jamming applications due to its broad band design feature, small size and high power handling capacity. This tactical log periodic antenna uses loading technique to reduce the overall size of array. The shipping length of antenna is 6 feet making it highly suitable for mobile and tactical applications.
Antenna Experts offer following types of tactical log periodic antenna (single polarized and dual polarized log periodic dipole antennas for tactical application:
For E & H Dual Polarized Signal Simultaneously: Please visit our “Dual Polarized Log Periodic Antenna” section of our website for directional coverage for both vertical & horizontal polarized signals simultaneously.
For E or H Dual Polarized Signal: Please visit our “Log Periodic Antenna” section of our website for directional vertical or horizontal polarized signal by changing the polarization of LP antenna.
